Om fartøyet

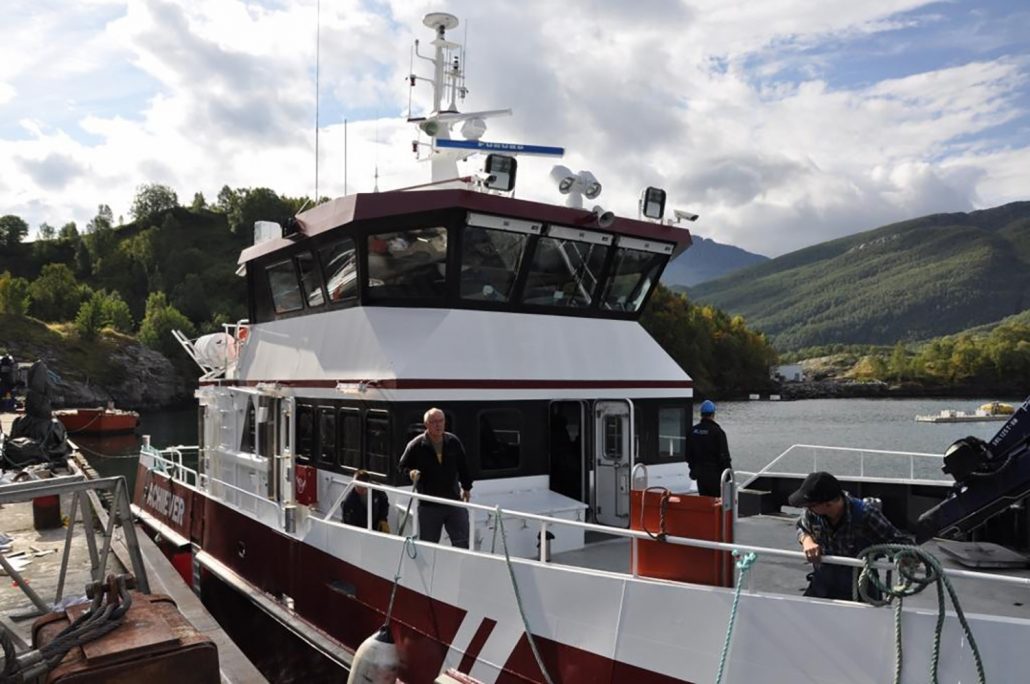

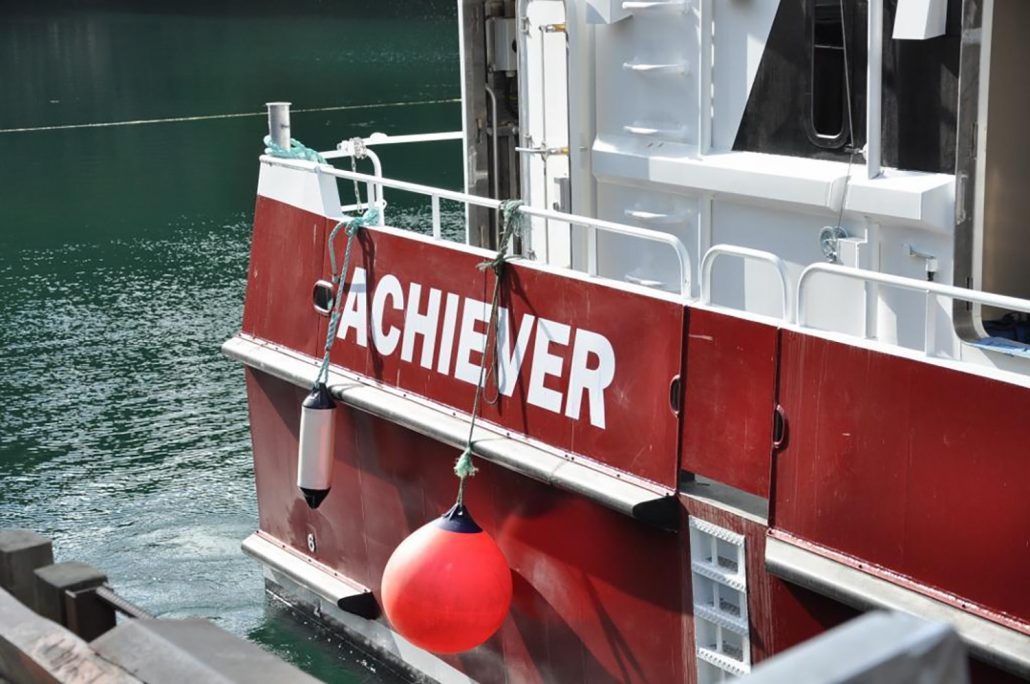

Building number 69 – «Achiever» was delivered to Northern Offshore Services 25. August 2011.

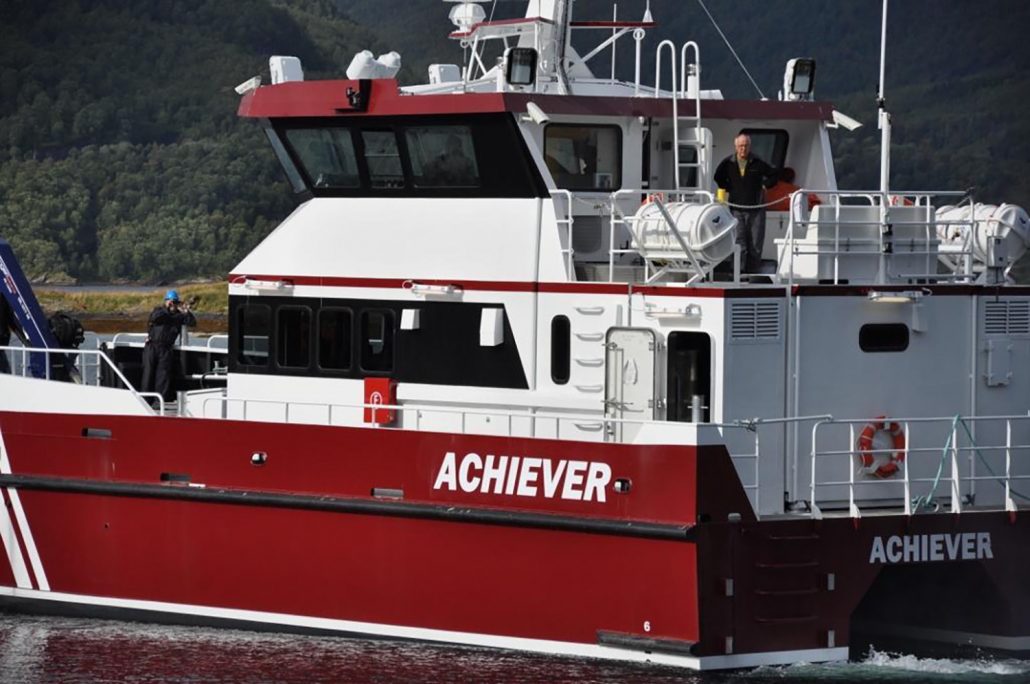

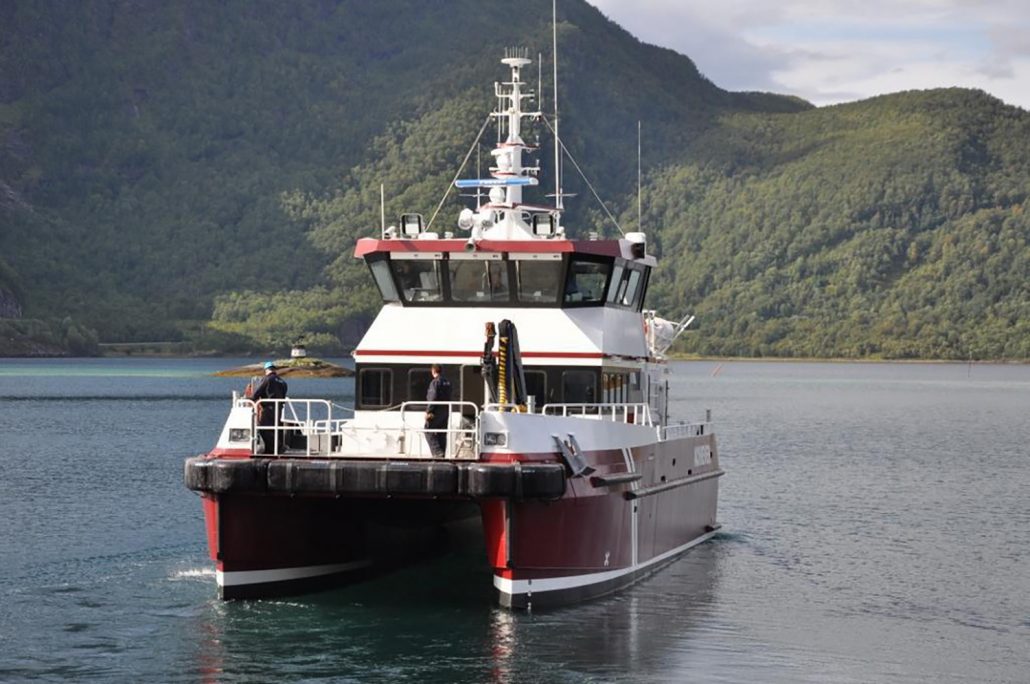

«Achiever» is an wind farm service catamaran with main dimensions 19,99×7,6 meter, and the superstructures mounted on flexible mountings. This effort gives an exeptional low sound level inside the passanger saloon and in the wheelhouse!

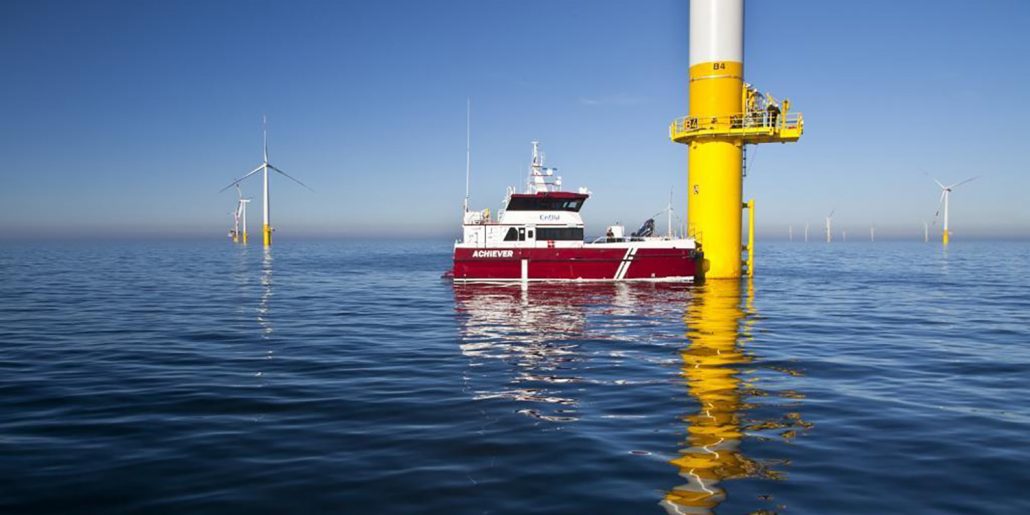

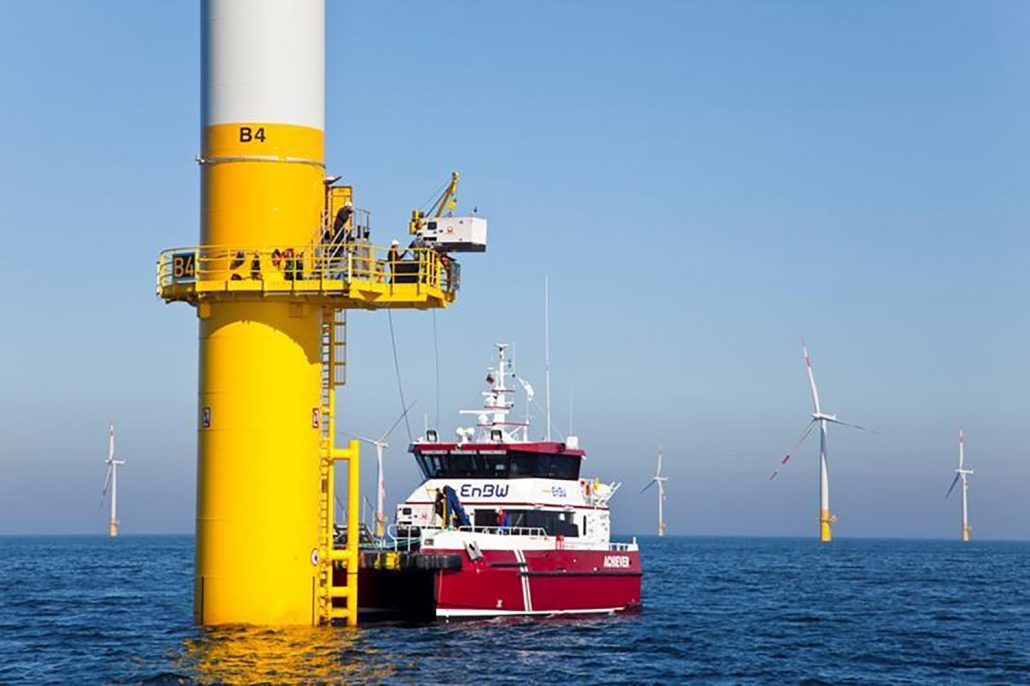

The vessel is used to carry maximum 12 passengers and equipment to offshore wind mills during installation, operation and maintenance work. It is well equiped with a 12 ton metres marine crane, a diesel transfer system, and have a large deck space available for storage of equipment and containers. Service speed approximately 25 knots.

The superstructure contains a large passanger saloon with 12 chairs and a sofa/table.  Further more 2 cabins, 2 toilet rooms (one with a shower), pentry and wardrobe. In the wheelhouse the crew have a sofa/table, a small pentry and an office table in addition to the bridgeconsoll.

The vessel has the class notation Det Norske Veritas class DNV +1A1 HSLC R1 CREW, and  comply with the regulations of the Danish flag state.

The vessel is developed in close cooperation with the shipowner, and with supprt from Innovasjon Norge.

We wish the shipowner good luck with the new vessel, and thank you for your cooperation during the construction period!

Utrustning

  • Propulsion system:
  • Twin MTU diesel engines 8V 2000 M72, 720 kW at 2250 rpm
  • Twin Servogear marine gear HD 220 HR/HL ratio 2,609:1, with direct driven PTO for hydraulic pumps on each gear.
  • Twin Servogear CP propeller 9P805-0802A.
  • Kobelt remote control system
  • Auxiliary engines:
  • 2 x Perkins 422 TGM med Stamford PN144J generator. Motoreffekt 25,1 kW, generator effect 22,1 kW, frekvens 50 Hz, 400V, 3-fase
  • Bow thruster:
  • 2×50 BHP hydraulically driven (Sleipner Motor)
  • Deck machinery:
  • Palfinger PK 12000 (M)A, 38,3 ton metres, marine crane. Including mounting socket, radio remote control, 2000 kg winch, CE approved.
  • Anchor winch.
  • High pressure washer, 28 bar / 280 litres/min
  • Ocean 3 bow fenders
  • The NavCom equipment is delievered by Furuno, Sweden
  • Electrical work carried out by El. installatøren
